to the exposed barb. Then, connect the other end of the transfer tube to the exposed barb on the resin pump, ensuring it's fully sealed to the surface of the hardware. Use the included cable tie on this barb fitting to further ensure that the transfer tube remains securely connected to the resin pump at all times. Each resin container comes with its own unique resin card for tracking your material usage. Simply insert your new resin card into the resin pump. The UI will indicate resin levels as you print and will give you an indication of when it needs to be replaced. Finally, remove the drip cap from the underside of the resin pump, saving it on the storage peg in case of the need for future use. To connect your assembled Resin Pumping System to your printer, simply insert the resin pump into the standard resin cartridge slot at the side of your printer. You know it's set up appropriately if your resin pump and resin register on your UI after this short message appears.

After installing a new resin pump or transfer tube, you may notice a short delay before resin flows into your resin tank during your next print job. This is a normal, one-time priming stage required to fill the pump's tubing with resin. After this stage is complete, your future prints will start without delay. Changing your transfer tubing periodically will not only maintain the performance of your resin pump but enable you to seamlessly switch between resins with one system. Choose from the highest performance materials in the industry: from Formlabs fast-printing Draft Resin and impact-resistant Tough 2000 Resin to dental Model Resin, Clear Resin, and more. Whether you're using it to scale production or print next-day parts, Formlabs Resin Pumping System empowers you with more continuous, affordable, and sustainable printing operations, so you can continue to focus on what you do best. Learn more about how it can empower your printing operations at Formlabs.com.

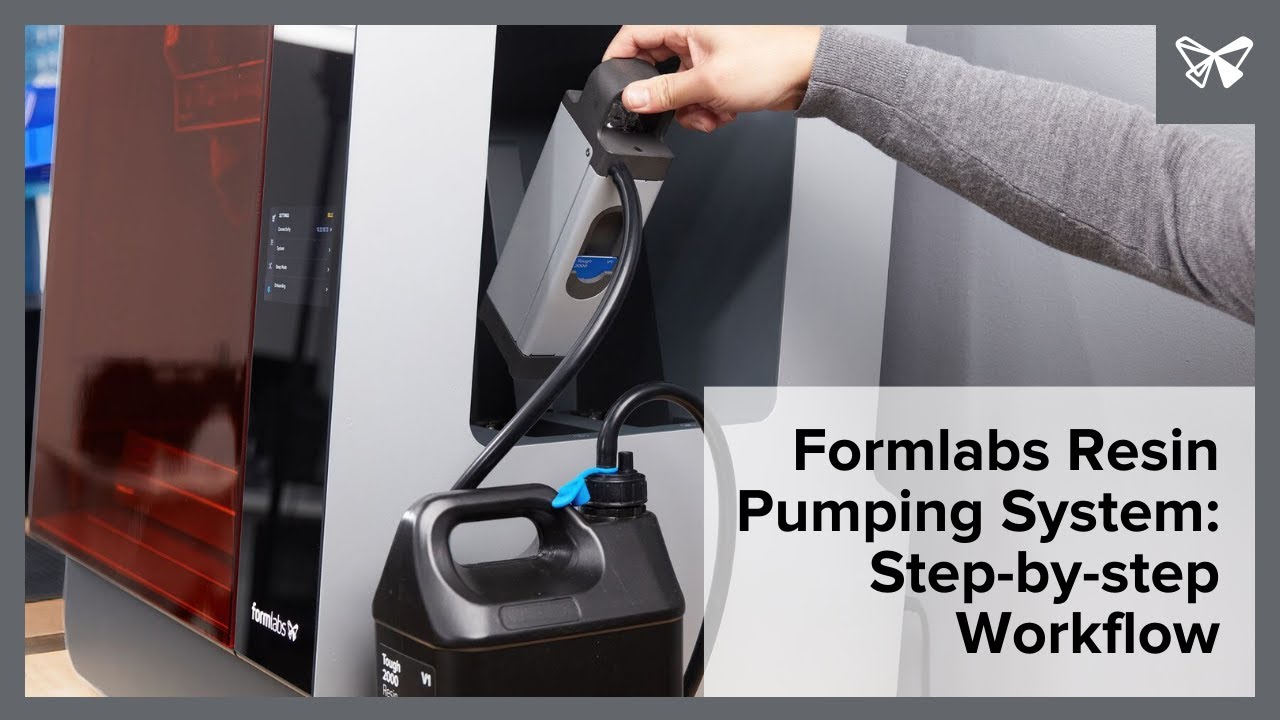

Looking to print more continuously, affordably, and sustainably with the highest performance materials in 3D printing? Formlabs Resin Pumping System saves you valuable time and money, dramatically streamlining your operations with five times the capacity of a standard resin cartridge. In this video, we'll show you how easy it is to integrate the Resin Pumping System with any new or existing Form 3 series printer in use today. The Resin Pumping System works right out of the box with two main components: a resin pump, which integrates seamlessly into your printer's existing cartridge slot, and a compact 5-liter resin container that sits next to your printer. There are just a few easy assembly steps to follow before using the Resin Pumping System with your printer. To connect the resin pump and resin supply with the transfer tube, twist cap off the resin container and replace it with the included transfer cap. Remove the silicone plug on the transfer cap and connect the transfer tube.
