Grand Ethiopian Renaissance Dam: Engineering Marvel or Water War Trigger?

아프리카에서 가장 큰 수력발전소인 에티오피아의 그랜드 에티오피아 르네상스 댐은 에너지를 약속하지만 지역 물 분쟁을 촉발하고 있습니다.

### 에티오피아 르네상스 댐: 50억 달러 규모의 거대 댐이 불러온 글로벌 긴장
* 🌍 에티오피아의 **그랜드 에티오피아 르네상스 댐(GERD)** 건설은 아프리카 최대 수력발전소로 6,000메가와트의 전력 생산과 740억 입방미터의 물 관리를 목표로 함.
* 💡 에티오피아는 에너지 부족 문제 해결과 경제 성장을 위해 댐 건설을 추진하지만, 나일 강 수자원에 의존하는 이집트와 수단의 우려를 야기함.
* ⚙️ 댐은 높이 155m, 길이 1780m의 롤러 압축 콘크리트(RCC)로 건설되었고, 1천만 입방미터 이상의 콘크리트와 4.9km 길이의 보조 댐이 사용됨.
* 🌊 블루 나일 강의 물을 댐 건설을 위해 우회시키는 과정과 14,700 입방미터/초의 방류 용량을 가진 4개의 수로를 설치함.
* ⚙️ 댐에는 총 5,150메가와트의 발전 용량을 가진 13개의 프랜시스 터빈이 설치되어 있으며, 8m 직경의 펜스톡을 통해 물이 공급됨.
* 💧 댐은 홍수 조절 및 하류 지역의 수자원 관리를 목표로 하며, 퇴적물 관리를 통해 수단과 이집트의 하류 저수지 퇴적 문제 해결에 기여함.
* 🚧 건설 과정에서 지질학적 문제, 원격지 건설의 어려움, 증발 문제 등의 환경적 과제에 직면함.
* ⚔️ 이집트는 나일 강 수자원의 90%를 의존하기 때문에 댐 건설로 인한 수자원 감소를 우려하며, 이로 인해 에티오피아와 이집트 간의 심각한 갈등이 발생함.  **50억 달러** 규모의 댐 건설은 아프리카 최대 수력발전소이자 세계적으로 중요한 인프라 프로젝트임.

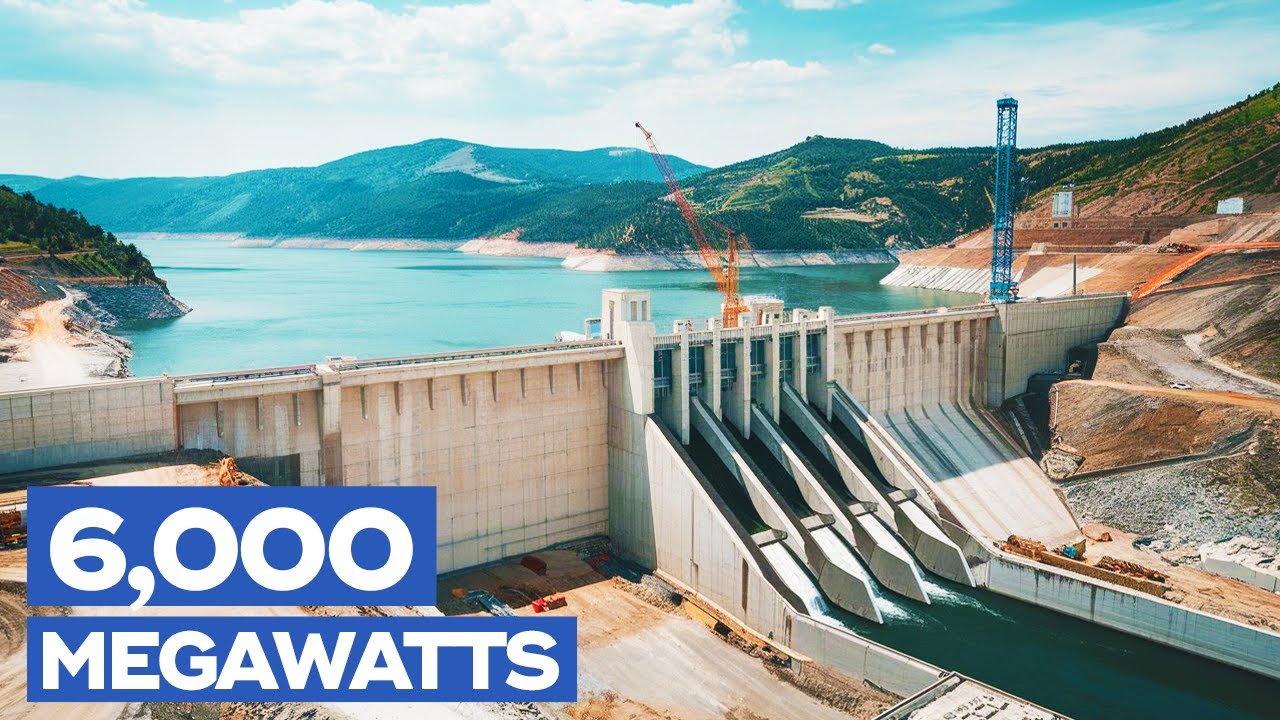

In an era marked by resource scarcity, one project looms ominously, poised to ignite the first water war of the

21st century: the Grand Ethiopian Renaissance Dam. The largest hydroelectric power plant in Africa, it is a

colossal engineering feat that promises to generate 6,000 megawatts of electricity and control 74 billion cubic meters of water.

Located on the Blue Nile, this dam is not merely about power; it's about control. Ethiopia aims to transform its energy

sector and boost its economy, but the project has raised alarm in neighboring countries like Egypt and Sudan, who rely

heavily on the Nile for their water supply. As tensions rise, questions remain: will this engineering marvel bring

prosperity to Ethiopia and beyond, or is it a ticking time bomb for regional conflict in the arid regions of East Africa, where

access to energy and water is vital? Ethiopia found itself facing a growing challenge. Despite the country's vast

rivers and hydropower potential, millions of its people remained without electricity. The increasing power demand, fueled by rapid population growth and

industrial development, highlighted a critical issue: Ethiopia's reliance on expensive and unsustainable energy sources couldn't keep up with the needs

of its people. The Blue Nile, one of the most powerful rivers in the world, flowed through Ethiopia, but the nation had yet

to fully harness its potential. As the need for energy reached a tipping point, the country sought a transformative

solution. Decades earlier, plans to tap into the Blue Nile's immense energy potential were discussed, but political instability and economic challenges

delayed any meaningful progress. It wasn't until the early 21st century that Ethiopia began to seriously consider

using the river for large-scale hydropower generation. After extensive research and technical studies, the government made a bold decision in 2011.

Construction of a massive hydroelectric dam began, marking the start of one of the most ambitious projects in African history.

Situated on the Blue Nile, the dam's strategic location, about 40 km from the Sudanese border, was selected to

maximize the river's flow for electricity generation. This project was not merely about fulfilling Ethiopia's own energy needs; it represented the

nation's aspiration to establish itself as a regional power hub. The dam, with a capacity to generate thousands of

megawatts, would provide enough electricity to power millions of homes and industries, not only in Ethiopia but

also in neighboring countries. The construction of the dam also aimed to regulate the flow of the Blue Nile, which

would reduce seasonal flooding and improve water management across the region. But what challenges did Ethiopia face during the construction of this

monumental project, and how has the journey unfolded? In just a minute, we'll dive into the mind-boggling engineering

techniques used to build this dam, including how they redirected one of the most powerful rivers in the world. You

won't want to miss this. But first, how would you like to watch our videos ad-free for just $2 a month, or get access

to exclusive content for $10 a month? For $7, you can pitch topics and get your name in the credits. Join our premium

community at www.patreon.com/sltheimpossiblebuild. And if you're just here for something free, grab our US

military billion-dollar blunders video at theimpossiblebuild.org/billionblunders. Both links are in the

description below. Standing at an impressive 155 m in height and stretching 1780 m across, the main dam is composed

of roller-compacted concrete. This material was chosen for its rapid setting and strength, critical for a project of this scale. The RCC technique

is highly efficient for large-scale dams, allowing for the continuous placement of concrete, which speeds up construction

and ensures structural stability. The dam's volume is enormous, with more than 10 million cubic meters of concrete used to

form the massive structure, ensuring that it can hold the immense pressure of the reservoir behind it. In addition to the

main dam, the project features a rock-filled saddle dam that stretches over 4.9 km in length and reaches a height of

50 m. The saddle dam plays a crucial role in supporting the reservoir, acting as a secondary containment structure to

manage the vast amount of water stored. Constructing the saddle dam required precision and care, particularly

in terms of managing water flow and sediment control, which are vital to maintaining the integrity of both the

main and saddle dams over time. At full capacity, the dam's reservoir will cover an area of 1874 square km, holding up to 74 billion

cubic meters of water. The sheer size of this reservoir posed significant challenges during the construction process, particularly regarding the diversion of

the Blue Nile. The river had to be temporarily diverted to allow construction of the dam's foundation, a

complex and delicate operation that required precise coordination and planning. This was achieved through the creation of four large box culverts, each

capable of discharging up to 14,700 cubic meters of water per second, ensuring that the river's natural flow

could be maintained while construction progressed. Three spillways have been integrated into the dam's design to

manage the flow of water and prevent overflow during periods of heavy rainfall. The main spillway is gated with

six radial gates that can each release 2,450 cubic meters of water per second. This allows for precise control over the

Water levels in the reservoir and ensures that the dam can handle even the heaviest flood events. An auxiliary

spillway is also included, designed to discharge water when the reservoir reaches full supply level. One of the

most complex aspects of the grid's construction is its power generation capacity. The dam houses two powerhouses,

one on each side of the river, equipped with a total of 13 Francis turbines. These turbines, which are designed to

operate under high water pressure, have a combined generating capacity of 5,150 megawatts. The powerhouse on the right

bank contains 10 turbines, each rated at 375 megawatts, while the left bank powerhouse contains six turbines. The electricity

generated will be transmitted via overhead lines connected to a 500 kilovolt switchyard downstream of the

dam, which will distribute the power throughout Ethiopia and potentially to neighboring countries. The installation of the turbines was a monumental task,

requiring extensive civil engineering and electromechanical work. Each turbine is fed by an 8 m diameter penstock

which channels water from the reservoir down to the turbines. The sheer size of the penstocks and the pressure of the

water flowing through them required careful planning and the use of high-quality materials to ensure the long-term functionality and safety of

the system. Each turbine has been strategically placed to maximize the use of water flow, ensuring optimal efficiency in power generation. The dam's

ability to regulate water flow is also a key aspect of its design, aimed not only at generating electricity but also at

managing water resources in the region. By controlling the flow of the Blue Nile, the grid is expected to mitigate

flooding downstream, particularly in Sudan, which has historically suffered from seasonal flooding during the rainy season. The dam will also produce

Sedimentation in downstream reservoirs has long been a problem in Sudanese and Egyptian water management.

This sediment control is achieved through the reservoir and spillway design, engineered to minimize silt buildup, ensuring

the dam's long-term functionality. Despite its innovative design and advanced construction techniques, the GERD faced significant challenges throughout its

development. A major hurdle was the complex geological conditions at the site, necessitating deeper excavation and additional concrete for stability, which

increased both time and cost. Additionally, the remote location in the Benishangul-Gumuz region posed

logistical difficulties. To address this, a rock crushing plant was established on-site, and a small airstrip was

constructed for efficient transport of materials and personnel. These solutions were crucial in maintaining the project's progress despite the inherent

challenges of building such a massive structure in a secluded area. The GERD also faced environmental challenges, particularly in managing the large

volume of water held in the reservoir. The risk of evaporation is a constant concern in such a large reservoir, as

water loss can affect both power generation and downstream water availability. However, the dam's design considers this, with the reservoir's

depth and the surrounding climate helping to minimize evaporation rates compared to other large dams in the

One of the most significant challenges facing the Grand Ethiopian Renaissance Dam (GERD) is the intense conflict between Ethiopia and Egypt. Egypt views the dam as directly threatening its water

security, as the Nile provides nearly 90% of the country's water supply. Tensions have escalated over concerns that the

dam could reduce the flow of the Nile, impacting millions of Egyptian farmers and Egypt's overall water supply.

Diplomatic efforts have struggled to resolve the issue, with Egypt even threatening military action, making this a complex geopolitical challenge.

The final stages of the dam's construction are now focused on completing the remaining turbines and finalizing the dam's electromechanical components. Once

fully operational, the grid, built for $5 billion, will not only be Africa's largest hydroelectric power plant but

also one of the most significant infrastructure projects in the world. If you enjoyed this journey, don't forget to

like, comment, subscribe, and hit that notification bell to stay updated.
