Ronin ecosystem tutorial. This video introduces how to use Ronin ecosystem products, including the DJI Focus Pro lidar, to DJI

transmission cable hub, DJI RS 4 Pro, DJI transmission, DJI Focus Pro, and Ronin 4D

handle grips. Make sure that all devices have been updated to the latest firmware. Install the camera, Focus Pro

lidar, and the Focus Pro motor to the RS 4 Pro. Attach a battery to the video transmitter for power

supply. Mount the video transmitter to the RS 4 Pro. Method one: Connect the system directly to access stabilization video

monitoring and focus control. Connection: Make sure to connect all devices correctly. Connect the Focus Pro lidar

and RS 4 Pro for power supply and communication. Connect the Focus Pro motor and RS 4 Pro for power supply and

communication, and then connect the video transmitter and camera. Attach the hand unit to the Bright remote monitor via

the DJI Bright remote monitor cable. After connection, link the video transmitter with the Bright remote

monitor, and then link the Focus Pro motor and hand unit. Stabilization video monitoring and focus control are available. Autofocus, manual focus, and

automated manual focus can be used after setting the lidar and calibrating the camera lens on the RS 4 Pro. Method 2: Using

the DJI Focus Pro lidar to DJI transmission cable hub, DJI RS 4 Pro, DJI

transmission, and the DJI Focus Pro focusing system are interconnected for stabilization video monitoring and focus

control. Using the DJI Focus Pro lidar to DJI transmission cable hub, in addition, users can perform lens calibration and

check the top-down view of the focus via the video transmitter connection. It is recommended to attach the DJI Focus

Connect the DJI transmission cable hub to the video transmitter for easy storage and connection. Mount the video

transmitter to the RS4 Pro and then connect the video transmitter and camera. Connect the DC out and USB-C splitter cable to

the DC in port and USB-C port of the video transmitter for power supply and communication. Connect the dual USB-C

connection cable to the two USB-C ports of the hub. Make sure that the icons on the cable hub are corresponding with the

ports of the hub; otherwise, communication is unavailable. Connect the USB-C focus motor connection cable to the USB-C port

of the Focus Pro motor for power supply and communication. Only a single motor can be used in this case. Connect the

dual USB-C power cable to the video transmission hub port of the RS4 Pro. Make sure that the icons on the cable hub are

corresponding with the icons on the ports of the gimbal; otherwise, communication is unavailable. Do not connect a third-party power cable to the

DJI Focus Pro hub or DJI transmission cable hub for power supply; otherwise, the gimbal hub and DJI transmission will be

damaged.  Use the video transmitter in the high-bright remote monitor for video monitoring. Link the Focus Pro motor and

hand unit for manual access. Autofocus, manual focus, and automated manual focus can be used for calibrating the camera

lens on the high-bright remote monitor via the Focus Pro hub and hand unit. Calibrate the camera lens as shown in

the steps below. Tap the MF icon on the bottom right of the screen to access the hub focus assistant settings.

PIP, when enabled, the small visible light camera window will be displayed.  1x or 2x can adjust the

zoom ratio of the image, which can be used to match the image of the camera. View lens profile T1, C2, and C3 lens

Profiles can be added. Tap to delete the selected lens profile. Lens calibration is required when adding a lens profile. Tap "C2 lens profile", enter CLE.

the lens focal length, and then tap [Music] "Calibrate". Tap "Confirm" when calibration is completed. Align the center of the

camera frame with the subject within a range of 0.7 to 1.3 meters. The PIP display

will display the large visible light image and distance. When the selected subject is within 0.7 to 1.3 meters, use the focus knob

to focus the camera lens and tap "Confirm" once the subject is focused. Focus on the subject in the center of

the camera view at a distance of about 3.7 to 4.3 meters. When the distance from the

subject is within 3.7 to 4.3 meters, use the focus knob of the hand unit to control

the camera lens focus. Tap "Confirm" once the subject is in focus. Lens calibration is now complete. Repeat the

steps to add other lens profiles. Attach the Ronin 4D hand grips to the hybrid

remote monitor and link the video transmitter and hybrid remote monitor. The gimbal can now be controlled using the Ronin 4D

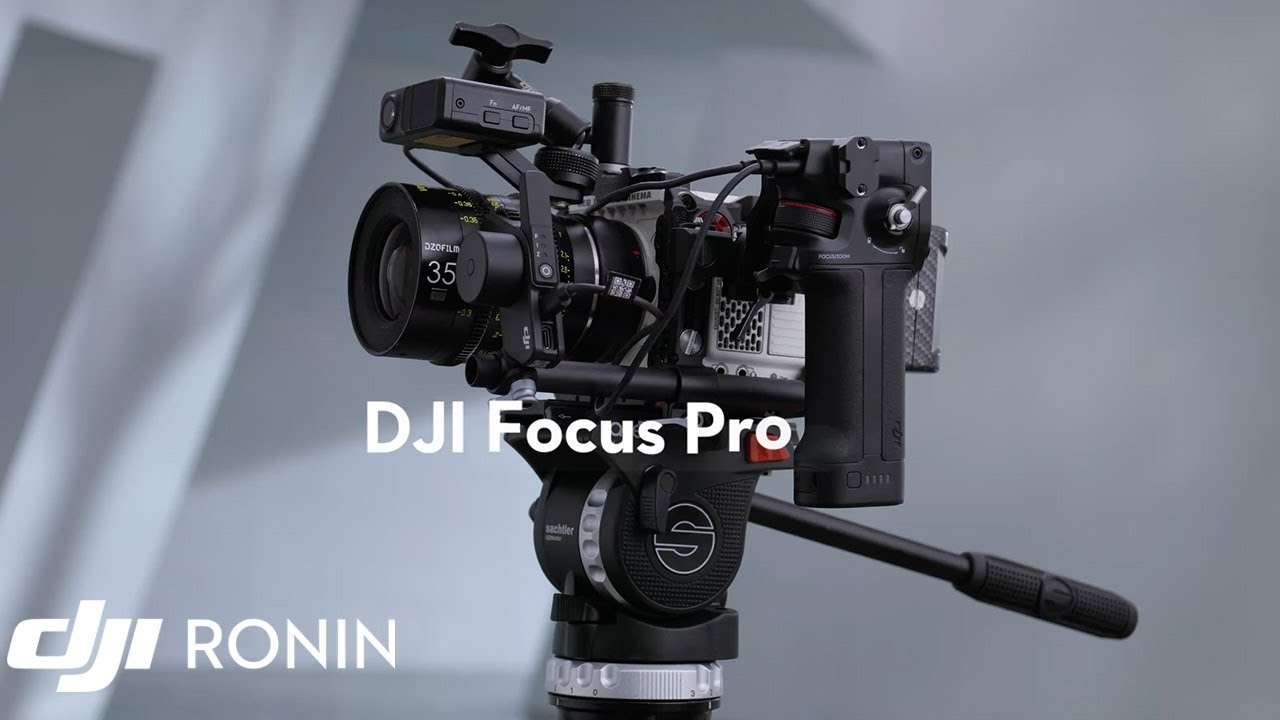

DJI Focus Pro | Next-Level LiDAR Autofocus - Ronin Ecosystem Tutorials

DJI Ronin

DJI Focus Pro 및 Ronin 시스템 연결 방법 소개

필요 장비: DJI Focus Pro lidar, DJI 전송 케이블 허브, DJI RS 4 Pro, DJI 전송 장치, DJI Focus Pro, Ronin 4D 핸들 그립

펌웨어 업데이트 및 장비 설치 방법 설명

방법 1: 직접 연결을 통한 안정화 영상 모니터링 및 초점 제어

Focus Pro lidar, RS 4 Pro, Focus Pro 모터, 비디오 송신기, 카메라 연결 방법

Bright 원격 모니터 연결 및 Focus Pro 모터, 핸드 유닛 연결

DJI 전송 케이블 허브를 이용한 연결 방법

DJI Focus Pro lidar, DJI 전송 케이블 허브, DJI RS 4 Pro, DJI 전송 장치, DJI Focus Pro 연결

렌즈 보정 및 상단 보기 확인 방법

비디오 송신기, 카메라, DC 출력 및 USB-C 분할 케이블 연결 방법

케이블 허브와 장비 연결 시 아이콘 일치 확인

RS4 Pro와 케이블 허브 연결 시 아이콘 일치 확인 및 타사 전원 케이블 연결 금지

허브 초점 보조 설정 접근 방법

렌즈 프로필 추가, 삭제 및 보정 방법

0.7~1.3m 및 3.7~4.3m 거리에서의 초점 조정 및 확인 방법

Ronin 4D 핸드 그립을 하이브리드 원격 모니터에 연결하고 비디오 송신기와 연결

Ronin 4D 핸드 그립을 이용한 짐벌 제어
