BlueHalo Locust: The Future of Laser Warfare Systems

The BlueHalo Locust laser weapon system offers a low-cost solution to drone threats, but faces significant operational challenges.

### The Future of Warfare: BlueHalo's Locust Laser Weapon System
* 🔫 The BlueHalo Locust laser weapon system requires only **3000 degrees of heat** and **$3 worth of energy** to target drones traveling at speeds of **50 miles per hour**, with fewer than a dozen currently deployed by the US Army in classified locations.
* 🌍 As drones increasingly impact warfare in places like Ukraine and the Red Sea, the Locust represents a **cost-effective response** to the threat posed by these **low-tech weapons**.
* ⚙ This palletized high-energy laser system, weighing **3,400 pounds** and measuring **seven feet in length**, utilizes an AI tracking system that can **lock onto drones from over two miles away** but struggles to **maintain that lock for long periods**.
* 💰 With a cost per shot of just **$3**, the Locust can repeatedly engage targets at a fraction of the cost of traditional missile systems, which can range from **$100,000 to $3 million**.
* 🌦 However, the Locust faces significant challenges such as **heat management and weather conditions** that can affect its performance, as well as logistical hurdles in **maintaining and repairing the system in remote combat zones**.
* 🔧 BlueHalo plans to address maintenance issues by **replacing specialized components with mass-manufactured parts**, while also providing **engineering support for the deployed systems** over the next four years.
* 📊 Other countries and companies are also developing laser systems, with the UK's DragonFire achieving a **cost of under $14 per shot**, indicating a **growing interest in laser technology for tactical applications**.
* 🚀 Despite the potential of laser weapons, concerns about their **effectiveness and reliability in combat** remain, as experts continue to face **significant technical challenges** in their deployment.

- [Reporter 1] 3000 degrees and $3 worth of energy is all this laser needs to shoot down this drone moving at 50 miles an hour. This is the BlueHalo Locust laser weapon system. Under a dozen are currently deployed with the US Army in classified overseas areas to take down unmanned aircraft. In Ukraine and the Red Sea, drones are changing warfare, making it easier to cause significant damage with cheap low-tech weapons. - The future of proxy warfare is here, and that is a technological standoff between human life and technology. - [Reporter 1] Laser weapons are one of several relatively inexpensive responses to drone threats, but compared to traditional weapons, there are challenges. They have a shorter range and limited power and can be harder to fix when something goes wrong. The Pentagon has not confirmed that a laser has successfully taken down a drone in combat. Here's how the laser works, why it may be the most cost-effective new way

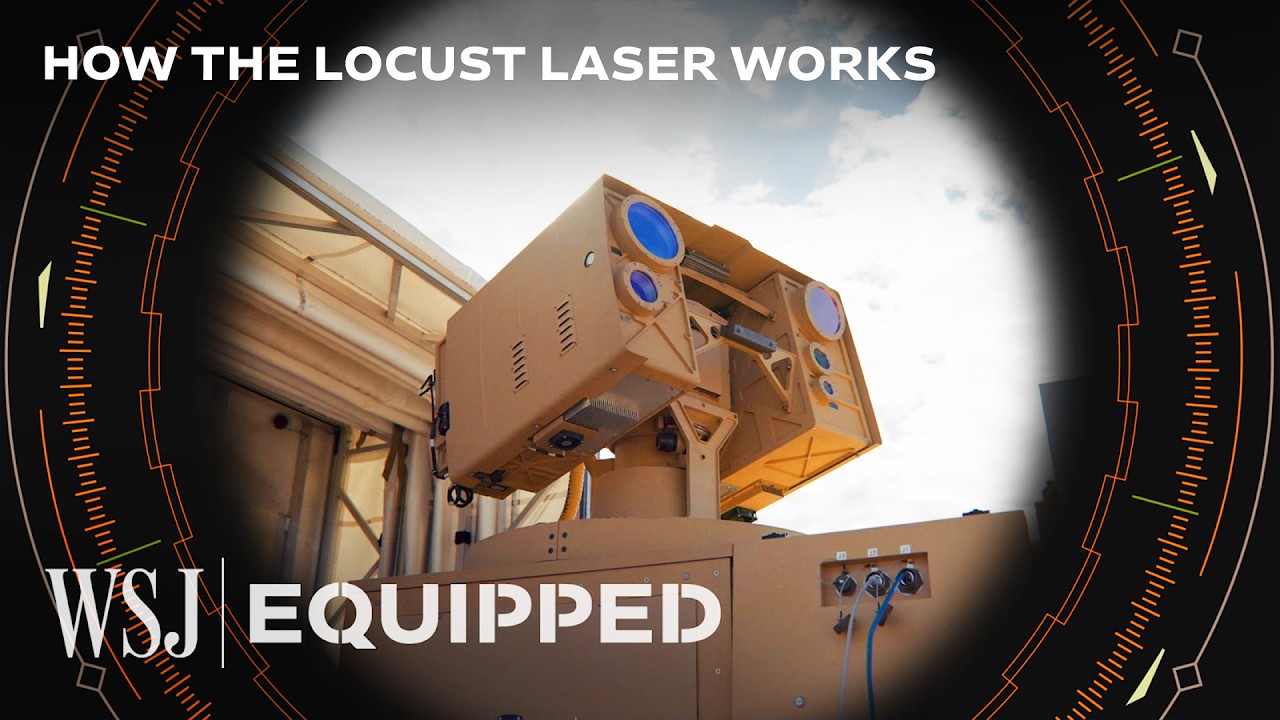

to fight drones and why there are significant hurdles on the battlefield. The Locust laser weapon system is a palletized high-energy laser or P-HEL. Weighing in at 3,400 pounds and measuring seven feet high by seven feet long, the Locust can fit on the back of large Army vehicles like this Striker. The weapon has two parts, the laser on the left and the tracking system on the right. The right houses an AI program that locks onto drones over two miles away, like this drone flying at over 45 miles an hour. The laser can take as many as 15 seconds to melt a target and can struggle to remain locked on it for long enough to take it down. Missile strikes, in comparison, are quicker, cause more damage, and can have a range 100 miles longer. The laser software is designed to look like a video game like Call of Duty, and it's operated with an Xbox controller.

That's so soldiers who are familiar with the software can quickly learn how to use it. When we can align how we actually operate the system with those natural skill sets, it's very powerful, but it's also, honestly, it's also just elegantly designed from a user interface and implementation standpoint. [Reporter 1] But actually hitting the target in a combat situation isn't easy. The Locust's power source here transmits energy through these 12 cables. Here you can see those individual fiber channels that all come together. Each one of those represents a little bit of a different spectrum of light all coming together into the beam control unit here. [Reporter 1] Without the beam control unit, the light particles or photons in the beam would be loose and disperse before they get to their target. In the desert outside of Socorro, New Mexico, bluehalo demonstrated just how precise its laser could be.

This white rectangle is an 18-wheeler truck about a half mile away. In just 1.5 seconds of beam contact, it melted this two-inch steel coin glued to the side. The $2,000 Mavic is traditionally destroyed with missiles costing anywhere from a hundred thousand dollars to $3 million. Though the Locust varies in price from 8 million to $10 million, it can be used over and over. - A cost per shot of a Locust laser weapon is really $3. The ability to have essentially an infinite magazine at a very, very low cost of engagement at very, very effective ranges across a wide swath of threats, and that's a very powerful addition to the arsenal. - [Reporter 1] But missiles like the Patriot have ranges of over 120 miles, while the Locust can go just about three miles. And with just a few working lasers on the market,

There are many logistical and technical challenges ahead. (plane exploding) Laser weapons have intrigued the public since their invention in the 1960s, but the Defense Department started taking more interest in the 1980s. - I know this is a formidable technical task, one that may not be accomplished before the end of this century. - [Reporter 1] And experts still face some of the same challenges today. First, there's heat. As energy travels through the power source, then the spectrum transmitters up the cable and into the laser head, some is lost along the way. Without air conditioners keeping the inside of the machine cold, it would melt the delicate tech inside the Locust. The second is weather. Photons in the beam will bounce off of particles in the air like rain, sand from storms, or fog, dispersing the beam, and making it less powerful. - No real difference than in some degree other weapon systems.

that can get impacted by sea salt or sand or humidity or any environment that they're operating in. - [Reporter 1] Both of these issues can lead to poor performance, like one February 2024 test of different lasers. Feedback from soldiers was not overwhelmingly positive, and they said that the lab and testing ranges were very different. - [Reporter 2] When P-HEL systems are deployed, there's another problem. Because laser weapons are so new, there is little infrastructure to maintain them. - [Reporter 1] The Army has said it has been difficult to find spare parts and someone to fix lasers when they break in remote areas, for example, in African combat zones. - [Reporter 2] Bluehalo says it aims to fix that issue by replacing specially made parts with mass-manufactured parts. For at least the next four years, Bluehalo will be providing on-the-ground engineering support for each deployed Locust.

Other countries and companies are also developing lasers. The UK's DragonFire had its first high-power firing against a target in March with a cost under $14 a beam. Defense contractors like Raytheon and Northrop Grumman are also developing lasers for various tactical purposes, like this one that can fit in the bed of a pickup truck and this mini laser. Bluehalo, as well as other companies, plan on honing their designs so the lasers can be lighter, easier to maintain, and more effective. But concerns about these new weapons may continue until their long-term success is proven in combat. (tense music)

This $10M U.S. Army Laser Melts Drones With $3 Beams | WSJ Equipped

The Wall Street Journal takes you inside carefully selected stories and events in a visually captivating way so you can dig deeper into the news and insights that matter to you.

The Wall Street Journal

The BlueHalo Locust laser weapon system uses 3000 degrees and $3 worth of energy to target drones moving at 50 miles an hour.

Currently deployed with the US Army, the laser system offers a cost-effective response to the growing drone threat in modern warfare.

Despite its advantages, the laser faces challenges such as shorter range, limited power, and difficulty in maintenance, while the Pentagon has not confirmed its success in combat.

The Power and Precision of the Locust Laser Weapon

The Locust laser weapon uses a unique power source and beam control unit to transmit energy and focus light particles, ensuring precision in targeting.

Its demonstration in New Mexico showed the ability to melt a steel coin from half a mile away in just 1.

With a cost per shot of only $3 and the ability to be used repeatedly, the Locust offers a low-cost, effective solution for engaging a wide range of threats.

Laser weapons have faced logistical and technical challenges since their inception, with the Defense Department's interest growing in the 1980s.

Key issues include heat loss during energy transfer and weather-related beam dispersion, leading to poor performance in tests.

The newness of laser weapons has resulted in a lack of infrastructure for maintenance, but Bluehalo aims to address this by providing mass-manufactured parts and on-the-ground engineering support for deployed systems.

Other countries and companies are increasingly developing lasers, with the UK's DragonFire achieving its first high-power firing in March at under $14 a beam.

Defense contractors like Raytheon and Northrop Grumman are also working on tactical lasers, including designs that fit in a pickup truck.

Companies like Bluehalo are focusing on making lasers lighter, easier to maintain, and more effective, but concerns about their long-term success in combat persist.
