Understanding the Slingshot Effect in Spacecraft Trajectories

The slingshot effect enables spacecraft to gain velocity by utilizing the gravitational pull of planets.

### Understanding the Slingshot Effect: Gravity Assist in Spacecraft Navigation
* 🚀 The slingshot effect is a **non-contact collision phenomenon** that occurs between a spacecraft and a celestial body, conserving both **momentum and kinetic energy** in an elastic collision.
* 🌌 This effect leads to a change in the spacecraft's **velocity and/or direction**, while the planet experiences a **loss of kinetic energy** equivalent to that gained by the spacecraft.
* ⚖ Due to the vast difference in mass, the change in the planet's velocity is negligible, demonstrating the principle that "**the larger the mass, the lesser the impact**."
* 🛰 An illustrative example is the Cassini mission to Saturn, which utilized the **slingshot effect four times**, gaining energy equivalent to **75 tons of rocket fuel**.
* 📅 Launched on October 6, 1997, the spacecraft executed multiple flybys, including **Venus and Earth**, before reaching **Saturn on July 1, 2004**.
* 📈 The effect can either **increase or decrease a spacecraft's velocity**, depending on its approach direction relative to the planet's orbital motion.
* 🔄 The trajectories of spacecraft during gravitational assists are modeled as **hyperbolas**, reflecting the **complex changes in direction and gravitational force** throughout the maneuver.
* 🎾 A useful analogy is throwing a tennis ball at a speeding truck, where the ball **gains speed significantly** while the truck's speed remains **unaffected**, similar to the **gravity assist** experienced by a spacecraft.

[Music] The slingshot effect can be analyzed as a non-contact collision between a spacecraft and a planet or other body. Both momentum and kinetic energy are conserved, so this is an elastic collision. The slingshot effect results in a change in the velocity or the

direction, or more usually both, of the spacecraft. The planet or other body loses an amount of kinetic energy equal to that gained by the spacecraft. So, in the slingshot effect, the planet loses a certain amount of kinetic energy, which is equal to the amount of kinetic energy

gained by the spacecraft. The change in the velocity of the planet or other body is insignificant because kinetic energy equals one-half MV squared, and the mass of the planet or other body is very large compared to that of the spacecraft. An example of the use of the slingshot

effect, or gravity assist as it is otherwise known, is in the Cassini mission to Saturn. This mission made use of the slingshot effect four times, with the spacecraft gaining an energy equivalent of 75 tons of rocket fuel as a result. As can be seen from the diagram,

the trajectory of the spacecraft was in fact quite complicated. It was launched from Earth on the 6th of October 1997 and flew in towards Venus, from which it again used gravity assist on the 21st of April 1998, which is marked on the diagram as a Venus flyby.

From there, it climbed up out of the Sun's gravity well until it completed a maneuver just beyond the orbit of Earth on the 1st of December 1998. It then flew back in for a second flyby of Venus on the 20th of June 1999 and completed an Earth

A flyby on the 16th of August 1999 gained a gravity assist from Jupiter on the 30th of December 2000 and finally arrived at Saturn on the 1st of July 2004. The slingshot effect can

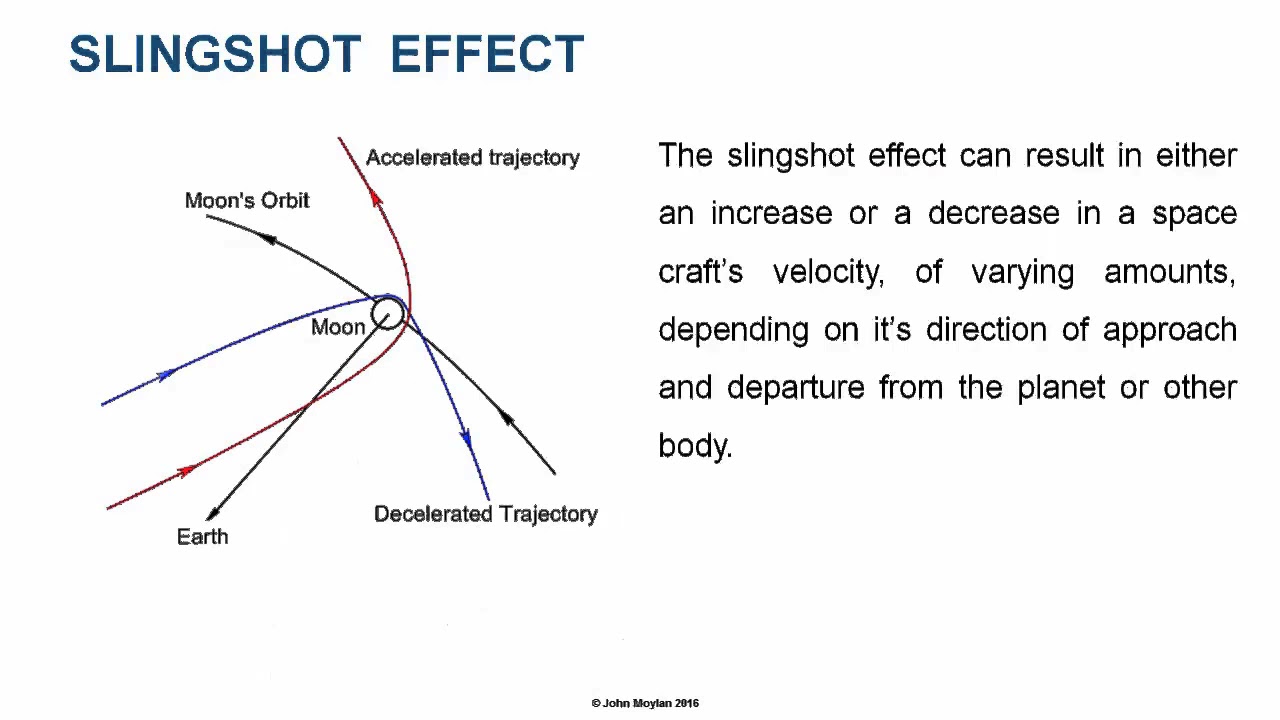

result in either an increase or a decrease in a spacecraft's velocity, varying in amount depending on its direction of approach and departure from the planet or other body. You can see in the diagram that if the spacecraft approaches the planet or other body from the direction opposite to the orbital

direction of the body from which it is getting a gravity boost, it will actually decelerate, and that's shown by the blue arrow. If, on the other hand, it gets a gravity assist in the direction of the orbital motion of the body, it will have an accelerated trajectory, as is shown by

the red arrow. The slingshot effect is an example of projectile motion, but the trajectories of spacecraft undergoing a gravitational assist are best modeled as hyperbolas rather than parabolas due to the change in the direction and force of gravity as the spacecraft

approaches and then moves away from the planet. The slingshot effect can be compared to throwing a tennis ball at the front of a speeding truck. Assuming that the collision is elastic, the ball is accelerated by a factor equivalent to the speed of the truck, while the effect

on the speed of the truck is negligible. So, if you throw a tennis ball at the front of a speeding truck, the tennis ball will be accelerated by a factor equivalent to the speed of the truck, but because the tennis ball weighs so much less than the truck, the truck's

Speed will be unaffected; it's the same effect as a gravity assist for a spacecraft from a planet. Summary: The slingshot effect is a non-contact, elastic collision between a spacecraft and a planet. Both momentum and kinetic energy are conserved.

The slingshot effect results in a change in the velocity and/or direction of the spacecraft. The planet or other body loses kinetic energy equal to that gained by the spacecraft. The change in the velocity of the planet is insignificant because the mass of the planet is very much larger than that of the

The Slingshot Effect - HSC Physics

John Moylan

The Slingshot Effect: Principles and Energy Conservation

The slingshot effect is a non-contact elastic collision conserving momentum and kinetic energy.

The spacecraft gains kinetic energy, while the planet loses an equal amount.

The planet's velocity change is negligible due to its significantly larger mass.

The Cassini mission utilized the slingshot effect four times, gaining energy equivalent to 75 tons of rocket fuel.

The mission involved flybys of Venus, Earth, and Jupiter.

The slingshot effect can increase or decrease a spacecraft's velocity depending on approach and departure directions.

Approaching opposite to the planet's orbital direction decelerates the spacecraft.

Approaching in the direction of the planet's orbital motion accelerates the spacecraft.

Spacecraft trajectories are best modeled as hyperbolas, not parabolas.

The tennis ball's acceleration is equivalent to the truck's speed, while the truck's speed remains unaffected.

The slingshot effect is a non-contact, elastic collision resulting in a velocity and/or direction change for the spacecraft.

The planet's velocity change is insignificant due to its much larger mass.
