Chromatography: Separating Mixtures by Phase Interaction

Chromatography separates mixtures based on components' attraction to the mobile or stationary phase, with paper, TLC, column, size-exchange, ion-exchange, affinity, HPLC, and gas methods available.

### Chromatography: Separating Mixtures with Mobile and Stationary Phases
* 🖋 When black ink on paper smudges with water, you see the ink separate into various colors, as black dye consists of different dyes and components, illustrating a **basic example of paper chromatography**.
* 📝 Chromatography is a technique that separates mixtures by using a **mobile phase** and a **stationary phase**, with various types such as paper chromatography, thin-layer chromatography (TLC), column chromatography, size-exclusion chromatography, ion-exchange chromatography, affinity chromatography, high-performance liquid chromatography (HPLC), and gas chromatography.
* 📄 In paper chromatography, the **stationary phase** is the paper, and the **mobile phase** is a solvent that travels up the paper through capillary action, carrying the components of the mixture with it.
* 📏 Over time, the components separate based on their polarity, with **more polar components attracted to the mobile phase** and **less polar components attracted to the stationary phase**.
* 🧪 Thin-layer chromatography (TLC) is similar to paper chromatography but uses a **glass slide coated with a layer of silica gel** as the stationary phase.
* 🗂 Column chromatography involves a column filled with a stationary phase (e.g., silica gel beads), and compounds are separated based on their **polarity** as the mobile phase is added.
* In ion-exchange chromatography, the stationary phase contains charged groups, so compounds with the **same charge are repelled and move faster**.
* 🔬 Gas chromatography uses a liquid stationary phase and a carrier gas as the mobile phase, separating compounds based on **differences in volatility**.

Have you ever scribbled something down with a black pen on a piece of paper, then accidentally smudged the paper with water? What do you remember seeing? Well, what happens is that you might see the black ink start to smudge and start to see some colors that aren't black at all, maybe some dark blues and some darker purples. But why is this? This is because black dye is actually made out of a bunch of different other dyes and different components. And what you've just witnessed is a basic example of paper chromatography. Chromatography involves taking some kind of mixture and using either solid or liquid to separate it out into its different parts. There are many different kinds of chromatography, but they all rely on having a mobile phase and a stationary phase. Let's go over how paper chromatography works, since this is the simplest kind.

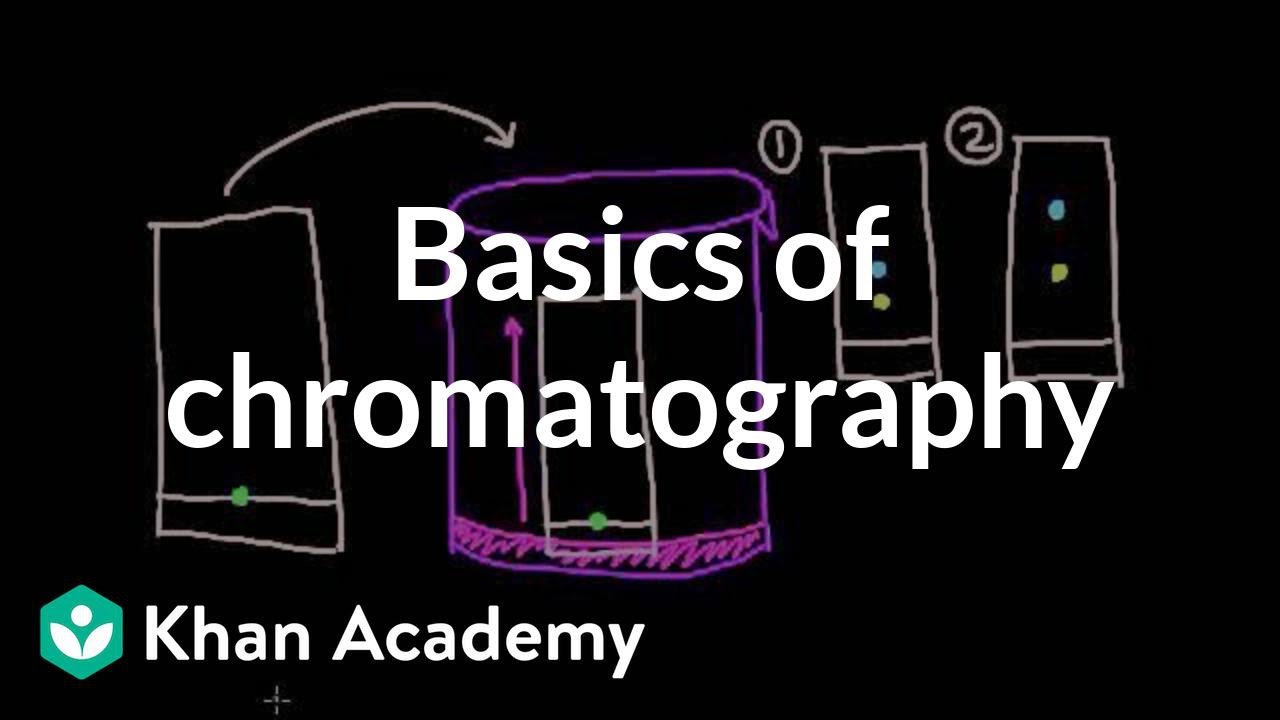

In paper chromatography, the stationary phase is the paper. So here's your piece of paper. You can draw a little line at the bottom and draw a spot for where you're putting on your dot of your sample. Next, you'll want to prep a beaker, or actually, any kind of container will do. But in this, you'll be putting in your mobile phase. And your mobile phase can be some kind of solvent. It could be water, or it could be any organic solvent you want. Now that you have this, you pour a small amount of solvent. Again, not too much, because you don't want this to already be above the level of your spot, or else it will just all bleed. And now when you put in your paper into this container, what you'll get is something that looks like this, with the spot being around here. And what you'll observe over time

is that through
capillary action, this pink solvent will
travel up the piece of paper. And as it does that, it'll
actually take some of the dyes from that green spot with it. And let's see what happens at
a few different time points. At the first time
point, you might see that it separated
into two spots. This implies that it's composed
of two different components. However, if this were
a very complex mixture, you could even see five,
six, or a lot of other spots. If you wait even longer,
this is what you'll see next. You'll see that the spots will
continue traveling even farther up the plate, and the
separation between them, that distance will
increase even more. So ultimately what
you've shown here is that whatever was in
the green spot originally wasn't just one compound. It was two compounds. And why do they
separate in this manner?

Well, the blue spot
traveled farther. That means that it was pretty
attracted to that pink solvent that was traveling along. Whereas, the yellow spot
didn't move quite as much, which means it
was more attracted to the paper for the
stationary phase. This competition between
the stationary phase and the mobile phase
pulling at the components is what drives the
separation that occurs in all different
kinds of chromatography. So, let's try to lay this
information out in a table. We've talked about how
for paper chromatography, the stationary phase is
a solid; the mobile phase is some kind of
solvent, so a liquid; and they're separating
it based on polarity, meaning how attracted it is to
the paper versus the solvent, depending on its
chemical properties. The next kind of
chromatography that's almost identical to
paper chromatography is known as thin-layer
chromatography.

or TLC for short. We'll see that all the
spots on this table are pretty much the same. The main difference
is that instead of having a piece of paper,
you have a glass slide that is coated with a
layer of silica gel. This is a great preparative
tool that is commonly used in the organic
chemistry lab. To remind you that these two are
related, what I've drawn here is a little beaker with a
small either plate or piece of paper inside. And the arrow shows that
the solvent is traveling up the plate through
capillary action. The next kinds of chromatography
we'll be going over are column chromatography. And in this case,
you have a column that I've drawn right
here on the left. And you fill it with some
kind of packing material and dump in some
solvent as well. You can lower your sample
that you want to separate out, and what you'll
find is that as you

keep dumping in
more solvent. This can separate into bands that
represent different compounds, and they will travel
down the column. So in basic column
chromatography, you're usually using
something like silica gel as your stationary phase. Your mobile phase is
typically an organic solvent, and again, you're separating
based on polarity. In size-exchange chromatography,
your stationary phase is composed of beads. However, these
little beads actually have some holes in the middle. And because of that, with
size-exchange chromatography, these beads completely
fill the column, and tiny compounds can
get through that center of the hole, like so. But really big
compounds kind of have to go around and go
between the beads. So what happens here is
that really small compounds travel pretty far, pretty fast,
whereas large compounds take a longer time to
come out the bottom. In ion-exchange
chromatography, the beads that are filling this column
have some kind of group on them.

that is charged. Compounds that have
the same charge will be repelled by
the column, meaning they'll travel pretty quickly. But compounds that
have an opposite charge will bind tightly to
the column and will be more reluctant to come
out since they are so attracted to the
stationary phase. Affinity chromatography
is also pretty similar, but this usually relies upon
very specific interactions, such as between an
enzyme and a substrate, and really relies on
this binding affinity. Things that will bind
tightly to the enzyme will probably just be
primarily the substrate, and everything else will
just get washed right off the column. Later on, what you
can do is wash out the compound of interest
that was previously bound to the column, using something
that that molecule is even more attracted to. With HPLC, HPLC stands for
high-performance liquid chromatography,
formerly known as high-pressure liquid
chromatography.

This is essentially the same as the basic column chromatography that you see there in yellow. However, with HPLC, it's a more advanced technique in that you're working with very, very small quantities, and the detector in the machine is much more sensitive. The last kind of chromatography is gas chromatography. Now, this looks pretty different compared to the others. And in this case, your stationary phase is a liquid, while your mobile phase is some kind of carrier gas that's passing over the liquid. So what happens is, you inject your sample, and it travels in a coil tube into that box known as the gas chromatograph. That's a fancy name for the equipment used to run gas chromatography. Inside the chromatograph is a heated chamber through which an inert gas flows. Here, the sample vaporizes and enters the gas flow onto the column. The things that are the most volatile,

meaning have a
lower boiling point, are able to travel faster,
whereas things with a higher boiling point take
longer to come out. And so this is a
separation method that's great when you have
differences in boiling point. So we've gone over all
these different kinds of chromatography, but
you could certainly go into each of these
in much more detail.

Basics of chromatography | Chemical processes | MCAT | Khan Academy

Our mission is to provide a world-class education for anyone, anywhere.
This channel includes Khan Academy videos on Medicine, presented by Rishi Desai, MD.

All Khan Academy content is available for free at www.khanacademy.org.

khanacademymedicine

Paper chromatography is a method of separating a mixture into its different components using a stationary phase (the paper) and a mobile phase (the solvent).

The black ink smudging and revealing different colors is a basic example of this process.

In paper chromatography, the sample is dotted on the paper, and as the solvent moves through it, the components of the mixture separate out based on their different affinities for the mobile and stationary phases.

Chromatography is a process where a solvent moves up a piece of paper, separating components based on their attraction to the solvent and the stationary phase.

The separation results in the appearance of multiple spots, indicating the presence of different compounds.

The technique relies on the competition between the stationary and mobile phases to drive the separation of components based on their chemical properties and polarity.

An Overview of Different Chromatography Techniques

Thin Layer Chromatography (TLC) uses a glass slide coated with silica gel to separate compounds through capillary action.

Column chromatography involves a stationary phase like silica gel, with the compounds separating into bands and traveling down the column based on polarity.

Size-exclusion chromatography uses beads to separate compounds based on size, with smaller ones passing through the holes and eluting faster.

Ion-exchange chromatography involves beads with groups, allowing the separation of compounds based on their charge.

Different Types of Chromatography and Their Mechanisms

Ion exchange chromatography separates compounds based on their charge, with like charges moving quickly and opposite charges binding to the column.

Affinity chromatography relies on specific interactions, such as between enzymes and substrates, with the substrate binding tightly to the enzyme.

HPLC is an advanced technique for working with small quantities, using a highly sensitive detector, while gas chromatography separates compounds based on their volatility using a liquid stationary phase and a carrier gas mobile phase.

The Significance of Boiling Points in Chromatography

Chromatography is a separation method based on differences in boiling points.

Substances with lower boiling points can travel faster, while those with higher boiling points take longer to elute.

This technique comes in various forms, each with its own specific applications and details.
